OPEN DATA PRODUCT CATALOGS - The Linux Foundation

Version DRAFT

The key words “MUST”, “MUST NOT”, “REQUIRED”, “SHALL”, “SHALL NOT”, “SHOULD”, “SHOULD NOT”, “RECOMMENDED”, “NOT RECOMMENDED”, “MAY”, and “OPTIONAL” in this document are to be interpreted as described in BCP 14 (RFC 2119 and RFC 8174) when, and only when, they appear in all capitals, as shown here.

The specification is shared under Apache 2.0 license. Development of the specification is under the umbrella of the Linux Foundation.

Topic Link Description
Version source Open Data Product Catalogs on GitHub Official source repository for the ODPC specification
Knowledge Base Open Data Product Spec Family Knowledge Base Practical examples, FAQs, and implementation guidance
Contribute Raise an issue in GitHub Submit issues or suggestions to the specification maintainers

Introduction

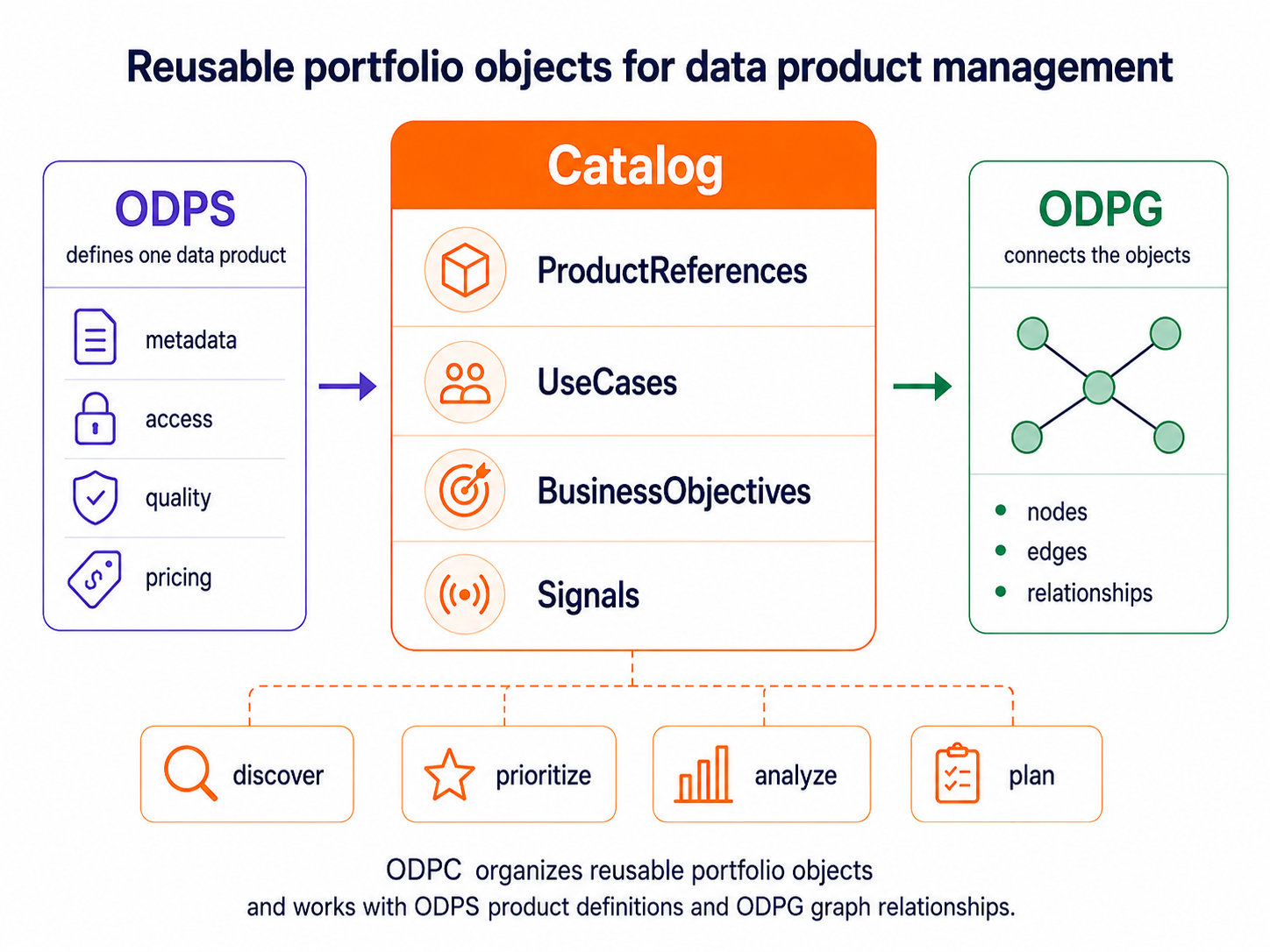

The Open Data Product Catalogs, ODPC, is a vendor-neutral, open-source, machine-readable catalog model for data product portfolios. It defines reusable catalog objects such as data product references, use cases, business objectives, KPIs, signals, and catalog items.

ODPC is part of the OpenDataProducts.org standards family. It complements the Open Data Product Specification, ODPS, by adding the catalog and portfolio layer around individual data products.

ODPS defines one data product. ODPC defines the reusable portfolio objects around data products. Open Data Product Graphs, ODPG defines the relationships between those objects.

The goal of ODPC is to help organizations move from isolated data product descriptions to managed data product portfolios that connect products to demand, use cases, business objectives, and measurable outcomes.

ODPC is ODPS-native, but not ODPS-only

ODPC is designed to work naturally with ODPS. ODPS remains the preferred product definition model in the OpenDataProducts.org standards family.

At the same time, ODPC is not limited to ODPS. Many organizations already use other product descriptions, internal schemas, vendor catalogs, marketplace definitions, or data mesh descriptors. ODPC supports those models through the ProductReference object and mapping profiles.

This makes it possible to catalog data products described with:

The ProductReference object provides the bridge between the catalog layer and the source product definition.

Why ODPC is needed

Data product management does not stop at one product. Organizations need to understand which data products exist, which use cases they support, which business objectives they contribute to, and which signals indicate demand, risk, opportunity, or change.

A catalog should not only list products. It should help organizations manage data products as a portfolio.

ODPC defines the structure for that portfolio layer. It enables organizations to catalog:

This creates a reusable foundation for discovery, governance, prioritization, AI-assisted planning, and graph-based portfolio analysis.

ODPC organizes the portfolio. ODPG connects the portfolio. GraphRAG makes the connected portfolio usable by AI assistants for discovery, gap analysis, impact mapping, and decision support.

Specification aims and aspects

ODPC aims to:

Note! In the "Open Data Product" focus is on the latter words and the prefix "open" refers to the openness of the standard. Any kind of connotations to open data are not intentional, intended, or desirable.

Core design principle

The OpenDataProducts.org standards family follows a simple separation of concerns.

This keeps each specification focused. ODPC should not redefine the full structure of a data product. That belongs to ODPS or to another source product model. ODPC should also not define graph traversal, graph analytics, or relationship semantics. Those belong to Open Data Product Graphs, ODPG.

Main ODPC objects

Example of catalog use:

schema: https://opendataproducts.org/odpc-v1.0/schema/odpc.yaml
version: "1.0"
kind: Catalog
catalog:
  metadata:
    id: CAT-001
    name:
      en: Urban Mobility Data Product Catalog
    description:
      en: Catalog of data products, use cases, objectives,
          and signals related to urban mobility.
    graph:
      standard: ODPG
      version: "1.0"
      $ref: https://example.org/graphs/urban-mobility.graph.yaml

The first version of ODPC focuses on these objects:

These objects are designed to be reusable across catalogs, tools, AI workflows, and graph models.

Catalog Toolkit

Snippet of YAML version:

schema: https://opendataproducts.org/odpc-v1.0/schema/odpc.yaml
version: "1.0"
kind: Catalog
catalog:
  metadata:
    id: CAT-001
    name:
      en: Urban Mobility Data Product Catalog
    description:
      en: Catalog of data products, use cases, objectives,
          and signals related to urban mobility.
    graph:
      standard: ODPG
      version: "1.0"
      $ref: https://example.org/graphs/urban-mobility.graph.yaml

ODPC is published in several forms for different users and tools. This specification provides the human-readable documentation, while the schema, catalog object records, and example files provide machine-readable resources for validation, catalog integration, AI retrieval, and automation. Use odpc.yaml or odpc.json to validate catalog files, objects.jsonl for lightweight object selection and retrieval, and the catalog examples when generating or repairing ODPC YAML.

Resource Format Purpose
llms.txt Text AI agent guidance for discovering and using ODPC resources
odpc.yaml YAML Schema YAML representation of the ODPC validation schema
odpc.json JSON Schema JSON representation of the ODPC validation schema
objects.jsonl JSONL Agent-friendly one-object-per-line file for retrieval, classification, and lightweight tools
minimal.yaml YAML Minimal valid ODPC catalog example
full.yaml YAML Full catalog example with product references, use cases, business objectives, KPIs, and signals
product-reference.yaml YAML Standalone ProductReference example
use-case.yaml YAML Standalone UseCase example
business-objective-with-kpis.yaml YAML Standalone BusinessObjective example with nested KPIs
signal.yaml YAML Standalone Signal example

Agent-oriented helper scripts are available in the source repository for maintaining and using the catalog artifacts.

Script Purpose
check_agent_artifacts.py Checks schema alignment, example files, object JSONL records, and llms.txt references
generate_catalog_artifacts.py Regenerates derived catalog artifacts such as source/schema/odpc.json from canonical source files; use --check to detect drift
search_objects.py Searches ODPC object records by keyword or exact object id; use --json for machine-readable results
validate_catalog.py Validates ODPC YAML or JSON catalog files against the ODPC schema
explain_catalog.py Summarizes an ODPC catalog file, including counts, ids, graph reference, and modeling hints

The Markdown tables in this specification are intended for human readers. The schema, JSONL, and YAML example files are intended for programmable use, automation, validation, AI retrieval, and catalog tooling.

AI Agent Usage Patterns

ODPC is designed to be usable by AI agents, catalog tools, retrieval systems, and automation workflows. From an agent perspective, ODPC provides the portfolio operating layer around data products: it names reusable catalog objects, points to authoritative product definitions, separates product metadata from portfolio metadata, and gives tools enough structure to validate, retrieve, compare, and plan.

ODPS defines one data product. ODPC defines the reusable portfolio objects around data products. ODPG defines the relationships between those objects. ODPV provides shared vocabulary terms. This separation helps agents choose the right source before acting.

Agent capabilities enabled by ODPC

Agents can use ODPC to:

Common agent workflows

Workflow Agent behavior
Catalog generation Scan ODPS files or other product definitions and create ODPC ProductReference entries that point back to the source model.
Catalog validation Validate catalog files, check required fields, detect broken references, and suggest compliant repairs.
Product discovery Answer user questions such as which products exist for a domain, use case, objective, or standard.
Portfolio explanation Summarize why a product exists, what it supports, who owns it, and what objective or signal gives it context.
Gap analysis Find missing products, unsupported use cases, objectives without measurable support, and signals without planned action.
Graph preparation Convert ODPC objects into graph node candidates and prepare relationship candidates for ODPG.
Governance review Identify catalog entries with missing ownership, unclear status, weak governance profile, or inconsistent product model references.
Migration support Convert existing inventories, ODPS files, vendor catalog records, or internal templates into ODPC catalog objects.
Retrieval and RAG Use llms.txt, objects.jsonl, schema files, examples, and include pages to retrieve the correct object definition before generating or editing ODPC content.

Agent behavior constraints

Agents using ODPC should keep object boundaries clear:

Example prompts ODPC enables

Validate this ODPC catalog and suggest schema-compliant repairs.

Generate ProductReference entries for all ODPS files in this folder.

Find active smart-city products that support event demand forecasting.

Identify use cases without matching product references and propose portfolio gaps.

Prepare ODPG node and relationship candidates from this ODPC catalog.

Summarize governance issues across products, owners, lifecycle statuses, and referenced product models.

ODPC Catalog

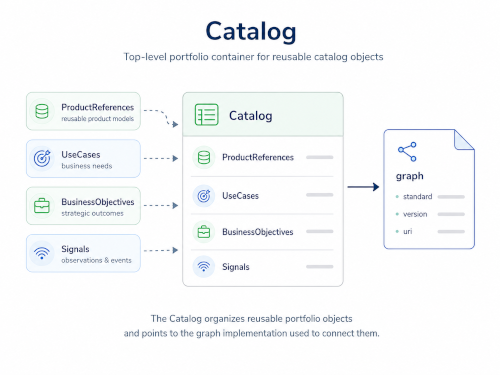

The Catalog object defines a reusable ODPC catalog. It provides the top-level structure for organizing product references, use cases, business objectives, signals, and catalog metadata such as ownership, scope, lifecycle status, tags, and graph implementation.

In ODPC, the Catalog object acts as the portfolio container. It helps organizations group related data products and demand-side objects around a domain, organization, geography, audience, or strategic theme.

The Catalog object can include product references, use cases, business objectives, and signals directly as reusable catalog objects. It can also define where the catalog graph is implemented through the metadata.graph attribute.

The metadata.graph attribute identifies the graph standard, version, and reference used for the catalog graph. The graph can be implemented with ODPG or another supported graph standard, such as RDF, JSON-LD, GraphML, openCypher, GQL, Gremlin, GraphSON, or GeoSPARQL.

The Catalog object should remain focused on catalog structure and portfolio organization. It should not define detailed product metadata, relationship semantics, nodes, edges, or graph rules. Detailed product definitions belong to product models such as ODPS. Relationship modeling belongs to the selected graph standard, with ODPG as the native standard for the OpenDataProducts.org specification family.

By defining catalogs as reusable objects, ODPC supports discovery, portfolio browsing, governance review, prioritization, filtering, AI-assisted portfolio analysis, and reporting across data product ecosystems.

Mandatory attributes and options

Example of catalog object usage:

schema: https://opendataproducts.org/odpc-v1.0/schema/odpc.yaml
version: "1.0"
kind: Catalog
catalog:
  metadata:
    id: CAT-001
    name:
      en: Urban Mobility Data Product Catalog
    description:
      en: Catalog of data products, use cases, objectives,
          and signals related to urban mobility.
Attribute Type Required Description
schema string ✓ URI of the ODPC catalog schema used to validate the catalog file.
version string ✓ Version of the ODPC specification used by the catalog file.
kind string ✓ ODPC root object type. Catalog files MUST use Catalog.
catalog object ✓ Top-level object that defines an ODPC catalog.
metadata object ✓ Catalog metadata, including identity, purpose, ownership, scope, lifecycle, and graph reference.
metadata.id string ✓ Stable identifier for the catalog.
metadata.name object ✓ Human-readable catalog name using language-tagged strings.
metadata.name.en string ✓ English catalog name.
metadata.description object ✓ Short explanation of the catalog purpose and scope using language-tagged strings.
metadata.description.en string ✓ English catalog description.

Optional attributes and options

Example of catalog object usage:

catalog:
  metadata:
    id: CAT-001
    name:
      en: Urban Mobility Data Product Catalog
    description:
      en: Catalog of data products, use cases, objectives,
          and signals related to urban mobility.

    owner:
      organization: Example Transport Authority
      team: Business Analytics
      role: Data Product Portfolio Manager

    scope:
      domains:
        - smart-city
        - mobility
        - transport
      geography: Abu Dhabi
      audience:
        - internal
        - public

    version: "1.0.0"
    status: active

    graph:
      standard: ODPG
      version: "1.0"
      $ref: https://example.org/graphs/urba.graph.yaml
    tags:
      - smart-city
      - mobility
      - events

  productReferences:
    - id: DP-001
      productID: urbanpulse-events
      productVersion: "1.0.0"
      name:
        en: UrbanPulse Events Data Product
      description:
        en: Data product providing event information for
            urban analytics and citizen services.
      productModel:
        standard: ODPS
        version: "4.1"
        format: yaml
        $ref: ./products/urba/odps.yaml

  useCases:
    - id: UC-001
      name:
        en: Event Demand Forecasting
      description:
        en: Forecast event-related demand to improve
            mobility planning and citizen services.

  businessObjectives:
    - id: BO-001
      name:
        en: Improve Urban Mobility Efficiency
      description:
        en: Reduce travel delays and improve movement
            across the city through better data-driven
            planning and operations.

  signals:
    - id: SIG-001
      name:
        en: Increasing Event Demand
      description:
        en: Indicates rising demand for event-related
            mobility and public service planning.
Attribute Type Required Description
metadata.owner object Ownership information for the catalog.
metadata.owner.organization string Organization responsible for the catalog.
metadata.owner.team string Team responsible for the catalog.
metadata.owner.role string Responsible role, such as Data Product Portfolio Manager.
metadata.scope object Business, organizational, geographic, or audience scope of the catalog.
metadata.scope.domains array of strings Domains covered by the catalog.
metadata.scope.geography string Geographic scope of the catalog, if relevant.
metadata.scope.audience array of strings Intended audience for catalog use, such as internal, partner, public, or commercial.
metadata.version string Catalog version.
metadata.status string Lifecycle status of the catalog, such as draft, active, deprecated, or retired.
metadata.graph object Defines the graph specification used to describe relationships between catalog objects.
metadata.graph.standard string Graph standard used for the catalog graph. Default is ODPG for Open Data Product Graphs. Other options: RDF for semantic web graphs, JSON-LD for linked data in JSON, GraphML for graph exchange, openCypher for property graph scripts, GQL for ISO property graph queries, Gremlin for graph traversal, GraphSON for TinkerPop-style graph JSON, or GeoSPARQL for geospatial RDF graphs.
metadata.graph.version string ✓ when metadata.graph is used Version of the graph standard.
metadata.graph.$ref string ✓ when metadata.graph is used File path or URL pointing to the graph definition.
metadata.tags array of strings Keywords used for search, grouping, filtering, and portfolio analysis.
productReferences array of objects List of data product references included in the catalog. Each item follows the ProductReference object schema.

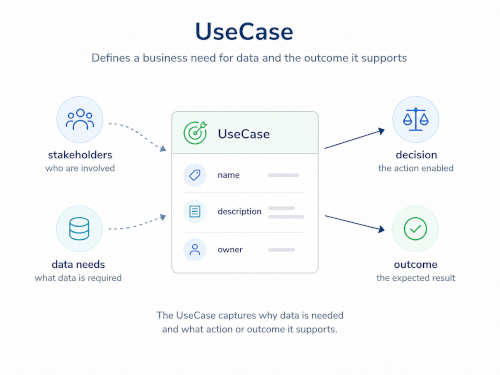

useCases array of objects List of use cases included in the catalog. Each item follows the UseCase object schema.

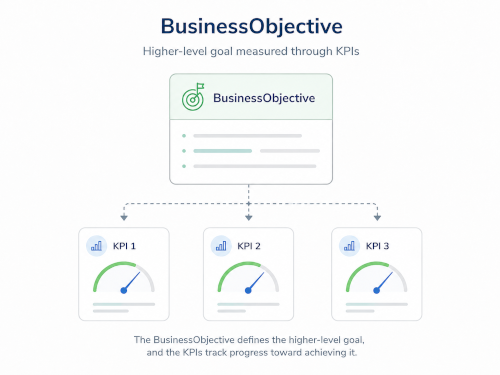

businessObjectives array of objects List of business objectives included in the catalog. Each item follows the BusinessObjective object schema.

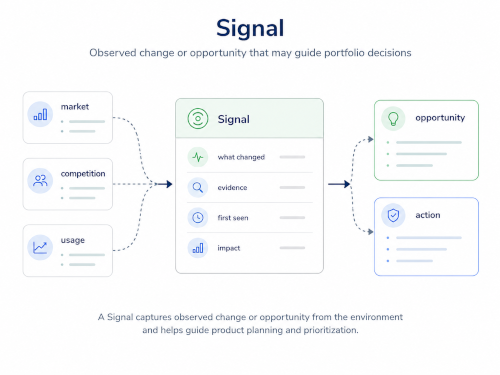

signals array of objects List of signals included in the catalog. Each item follows the Signal object schema.

ODPC ProductReference

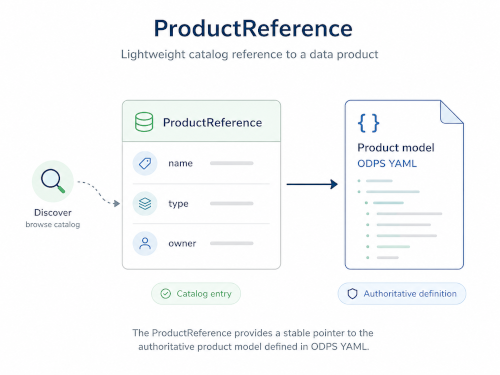

The ProductReference object defines a lightweight catalog reference to a data product. It identifies the product, provides the key information needed for catalog discovery, and points to the authoritative product definition through productModel.

In ODPC, a ProductReference is used to list, search, filter, and display data products as part of a portfolio. It should include enough information for users and tools to understand what the product is, who owns it, what domain it belongs to, what type of product it is, and where the full product definition is located.

The ProductReference object should stay lightweight. It should not duplicate detailed product metadata such as data access, SLA, data quality, license, pricing, support, or technical interface details. Those details belong in the referenced product model, such as ODPS.

ODPC is ODPS-native, but not ODPS-only. A ProductReference can point to an ODPS file or another product definition model through productModel.

Connections between products, use cases, business objectives, KPIs, signals, and other catalog objects belong to Open Data Product Graphs, ODPG. ODPG defines the graphs and relationships between catalog objects, while ODPC defines the reusable catalog objects themselves.

By defining product references as catalog objects, ODPC supports product discovery, portfolio browsing, filtering, prioritization, governance review, and AI-assisted portfolio analysis.

Mandatory attributes and options

Example of productReference object usage:

productReference:
  id: DP-001
  productID: urbanpulse-events
  productVersion: "1.0.0"
  name:
    en: UrbanPulse Events Data Product
  description:
    en: Data product providing event information for urban
        analytics and citizen services.
  productModel:
    standard: ODPS
    version: "4.1"
    format: yaml
    $ref: ./odps.yaml
Attribute Type Options Description
productReference object required Top-level object that defines a lightweight catalog reference to a data product.
id string required Stable identifier for the product reference inside ODPC.
productID string required Product identifier aligned with the referenced data product.
productVersion string required Version of the data product shown in the catalog.
name object required, language-tagged strings Human-readable product name.
name.en string required English product name.
description object required, language-tagged strings Short product description used for catalog display and discovery.
description.en string required English product description.
productModel object required Defines the authoritative product model or specification the catalog reference points to.
productModel.standard string required Product model or standard used by the referenced product, one of: ODPS, DPDS, or internal.
productModel.version string required Version of the referenced product model or standard, such as ODPS 4.1.
productModel.format string required Format of the referenced product model, one of: yaml, json, toon or html.
productModel.$ref string required Reference to the authoritative product definition, as a local file path or URL.

Optional attributes and options

Example of productReference object usage:

productReference:
  id: DP-001
  productID: urbanpulse-events
  productVersion: "1.0.0"

  name:
    en: UrbanPulse Events Data Product

  description:
    en: Data product providing event information for
        urban analytics and citizen services.

  valueProposition:
    en: Supports event-based mobility planning,
        citizen services, and urban operations.

  visibility: public
  status: production
  type: dataset

  domains:
    - smart-city
    - mobility

  categories:
    - urban analytics
    - citizen services

  standards:
    - ODPS

  tags:
    - events
    - smart-city
    - mobility

  portfolioPriority: high
  governanceProfile: structured

  owner:
    organization: Example Organization
    team: Urban Analytics
    role: Data Product Owner

  productModel:
    standard: ODPS
    version: "4.1"
    format: yaml
    $ref: https://example.org/products/urbanpulse-events/odps.yaml

  logoURL: https://example.org/assets/urbanpulse-logo.png

  outputFileFormats:
    - JSON
    - CSV
Attribute Type Options Description
valueProposition object optional, language-tagged strings Short explanation of the value the product provides.
valueProposition.en string optional English value proposition.
visibility string optional Product visibility, such as public, internal, restricted, or private.
status string optional Lifecycle status of the product, such as draft, active, production, deprecated, or retired.
type string optional Type of data product. One of: raw data, derived data, dataset, reports, analytic view, 3D visualisation, algorithm, decision support, automated decision-making, data-enhanced product, data-driven service, data-enabled performance, or bi-directional.
domains array of strings optional Business, operational, policy, or industry domains related to the product.
categories array of strings optional Catalog categories used for grouping and browsing.
standards array of strings optional Standards or specifications associated with the product, such as ODPS, DCAT, or OpenAPI.
tags array of strings optional Keywords used to classify, search, or filter the product reference.
portfolioPriority string optional Relative portfolio importance, such as low, medium, high, or critical.
governanceProfile string optional Governance posture or profile used to classify the product in the catalog.
owner object optional Ownership information for the product.
owner.organization string optional Organization responsible for the product.
owner.team string optional Team responsible for the product.
owner.role string optional Responsible role, such as Data Product Owner or Product Manager.
logoURL string optional URL to a logo or visual asset used in catalog display.
outputFileFormats array of strings optional Output formats available from the product, such as CSV, JSON, Parquet, or GeoJSON.

ODPC UseCase

The UseCase object describes a business, operational, analytical, or policy use case that needs data products. It captures why data is needed, who needs it, what decision or process it supports, and what outcome is expected.

In ODPC, a use case is a demand-side portfolio object. It helps organizations understand where data products create value and which business needs the portfolio should support.

A UseCase can describe required data through dataNeeds, but it should not directly reference data products. Connections between use cases, data products, business objectives, and signal belong to Open Data Product Graphs, ODPG.

ODPG defines graphs and connections between catalog objects. It is used to model relationships such as which data products support a use case, which use cases contribute to a business objective, and where portfolio gaps exist.

The UseCase object should remain focused on the use case itself, not on detailed relationship semantics.

By defining use cases as reusable catalog objects, ODPC enables discovery, prioritization, gap analysis, reuse analysis, and AI-assisted planning across data product portfolios.

Mandatory attributes and options

Example of useCase object usage:

useCase:
  id: UC-001
  name:
    en: Predictive Maintenance for Aircraft Fleet
  description:
    en: Predict maintenance needs earlier by combining
        aircraft usage, schedules, and maintenance history.
Attribute Type Options Description
useCase object required Top-level object that defines a use case in ODPC.
id string required Stable identifier for the use case.
name object required, language-tagged strings Human-readable use case name.
name.en string required English name of the use case.
description object required, language-tagged strings Short explanation of the use case, its purpose, and expected value.
description.en string required English description of the use case.

Optional attributes and options

Example of useCase object usage:

useCase:
  id: UC-001
  name:
    en: Predictive Maintenance for Healthcare Revenue Growth

  description:
    en: Predict equipment maintenance needs in healthcare facilities to reduce downtime, improve service reliability, and support revenue growth.

  domains:
    - healthcare
    - operations
    - revenue management

  stakeholders:
    - Healthcare Administrators
    - CFOs
    - Revenue Managers
    - Maintenance Engineers
    - Operations Managers
    - Safety Officers
    - Data Analysts

  businessChallenge:
    en: Healthcare organizations face operational disruptions from equipment failures, leading to service delays, safety risks, and lost revenue.

  decision:
    en: Schedule healthcare equipment maintenance proactively based on equipment usage, failure patterns, and patient service demand.

  expectedOutcome:
    en: Reduce equipment downtime, improve patient service continuity, reduce maintenance costs, and support measurable revenue growth.

  kpis:
    - Revenue growth from improved equipment uptime
    - Equipment downtime reduction
    - Maintenance cost reduction
    - On-time service performance
    - Patient service utilization rate

  impactMetrics:
    - Cost savings from reduced reactive repairs
    - Increased revenue from higher patient service availability
    - Improved on-time service performance
    - Enhanced safety and reduced operational disruption

  dataNeeds:
    summary:
      en: Combines revenue data, equipment sensor readings, maintenance logs, patient utilization metrics, and market trends to forecast failures and optimize service planning.
    items:
      - Historical revenue and cost data by service line
      - Patient visit records and demographics
      - Market competition analysis and pricing benchmarks
      - Service quality feedback and patient satisfaction scores
      - Real-time equipment sensor readings
      - Historical maintenance and failure logs
      - Equipment usage schedules
      - Inventory levels for parts availability

  scoring:
    businessValue: high
    effort: medium
    category: juicyAndWorthIt
    score: 3.0

  status: active
  priority: high

  tags:
    - predictive-maintenance
    - healthcare
    - revenue-growth
    - operations
Attribute Type Options Description
domains array of strings optional Business, operational, policy, or industry domains related to the use case.
stakeholders array of strings optional People, teams, roles, or groups involved in or affected by the use case.
businessChallenge object optional, language-tagged strings Business, operational, policy, or service problem the use case addresses.
businessChallenge.en string optional English business challenge statement.
decision object optional, language-tagged strings Decision, action, or operational choice the use case supports.
decision.en string optional English decision statement.
expectedOutcome object optional, language-tagged strings Expected business, operational, policy, or service outcome.
expectedOutcome.en string optional English expected outcome statement.
kpis array of strings optional KPI or key result labels used to assess the value or success of the use case.
impactMetrics array of strings optional Measurable or observable impact areas expected from the use case.
dataNeeds object optional Data required to support the use case.
dataNeeds.summary object optional, language-tagged strings Short summary of the overall data requirement.
dataNeeds.summary.en string optional English summary of the data requirement.
dataNeeds.items array of strings optional Individual data needs, expressed as plain strings.
scoring object optional Evaluation of the use case for prioritization or portfolio review.
scoring.businessValue string optional Estimated business value, such as low, medium, high, or critical.
scoring.effort string optional Estimated implementation effort, such as low, medium, or high.
scoring.category string optional Portfolio scoring category, such as quickWins, juicyAndWorthIt, niceToHave, or avoidOrDefer.
scoring.score number optional Numeric score used for prioritization, ranking, or portfolio analysis.
status string optional Lifecycle status of the use case, such as draft, active, paused, completed, or retired.
priority string optional Relative importance of the use case, such as low, medium, high, or critical.
tags array of strings optional Keywords used to classify, search, or filter the use case.

ODPC BusinessObjective

The BusinessObjective object defines a higher-level business, operational, policy, or strategic objective that data products and use cases contribute to. It captures the outcome the organization wants to achieve and provides the portfolio-level anchor for value management.

In ODPC, business objectives help move data product management from asset lists to outcome-driven portfolios. They help clarify which data products support strategic goals, which use cases contribute to measurable outcomes, and where gaps exist.

A BusinessObjective can include one or more KPIs to measure progress against the objective. KPI definitions stay inside the BusinessObjective object, not as top-level ODPC objects.

Connections between objectives, use cases, data products, catalog items, and graph relationships are defined outside ODPC, for example in Open Data Product Graphs.

By defining objectives as catalog objects, ODPC supports prioritization, investment decisions, governance reviews, AI-assisted portfolio analysis, and reporting on business value.

Mandatory attributes and options

Example of BusinessObjective object usage:

businessObjective:
  id: BO-001
  name:
    en: Improve Urban Mobility Efficiency
  description:
    en: Reduce travel delays and improve movement across the city
        through better data-driven planning and operations.
Element Type Options Description
businessObjective object required Top-level object that defines a business objective in ODPC.
id string required Stable identifier for the business objective.
name object required, language-tagged strings Human-readable business objective name.
name.en string required English name of the business objective.
description object required, language-tagged strings Short explanation of the business objective, its purpose, and expected direction.
description.en string required English description of the business objective.

Optional attributes and options

Example of BusinessObjective object usage:

businessObjective:
  id: BO-001
  name:
    en: Improve Urban Mobility Efficiency
  description:
    en: Reduce travel delays and improve movement across the city
        through better data-driven planning and operations.
  strategicAlignment:
    - en: Smart City Vision 2030
    - en: Transport Digital Transformation Program
  owner:
    organization: Example Transport Authority
    team: Business Analytics
    role: Strategy Lead
  expectedOutcomes:
    - en: Shorter average travel times across key corridors.
    - en: Improved public transport reliability.
    - en: Better coordination between road, traffic, and public transport operations.
  kpis:
    - id: KPI-001
      name:
        en: Average Travel Time Reduction
      description:
        en: Measures reduction in average travel time across selected mobility corridors.
      unit: percentage
      baseline:
        value: 0
        date: 2025-10-31
      target:
        value: 10
        date: 2026-12-31
  timeframe:
    startDate: 2026-01-01
    endDate: 2026-12-31
  status: active
  priority: high
Element Type Options Description
strategicAlignment array of objects optional Strategic programs, policies, visions, mandates, or transformation initiatives the business objective supports.
strategicAlignment[] object language-tagged strings One strategic alignment statement.
owner object optional Ownership information for the business objective.
owner.organization string optional Organization responsible for the business objective.
owner.team string optional Team responsible for the business objective.
owner.role string optional Responsible role, such as Strategy Lead, Product Owner, or Performance Lead.
expectedOutcomes array of objects optional Business outcomes expected from achieving the objective.
expectedOutcomes[] object language-tagged strings One expected outcome statement.
kpis array of objects optional Measurable indicators used to track progress against the business objective. KPIs are nested inside businessObjective, not defined as top-level ODPC objects.
kpis.id string optional Stable identifier for the KPI within the business objective.
kpis.name object optional, language-tagged strings Human-readable KPI name.
kpis.description object optional, language-tagged strings Explanation of what the KPI measures.
kpis.unit string optional Unit used for the KPI value, such as percentage, count, days, AED, or score.
kpis.baseline object optional Starting measurement used as the comparison point.
kpis.baseline.value number optional Baseline value.
kpis.baseline.date date optional Date when the baseline value was measured.
kpis.target object optional Target measurement expected for the KPI.
kpis.target.value number optional Target value.
kpis.target.date date optional Date when the target should be reached.
timeframe object optional Time period during which the business objective is active or expected to be achieved.
timeframe.startDate date optional Start date for the business objective.
timeframe.endDate date optional End date for the business objective.
status string optional Lifecycle status of the business objective, such as draft, active, paused, completed, or retired.
priority string optional Relative importance of the business objective, such as low, medium, high, or critical.

ODPC Signal

The Signal object describes an observed market, operational, user, technology, policy, competitive, quality, usage, risk, or gap indicator that may create demand for new use cases, new data products, or product improvements.

In ODPC, a Signal acts as the voice of opportunity. It helps organizations capture what is changing around them or inside their operations, then use that intelligence to guide portfolio planning, prioritization, and product development.

A Signal can come from internal sources such as search logs, usage analytics, support tickets, surveys, and operational systems. It can also come from external sources such as AI web crawling, competitor monitoring, market reports, public tenders, policy changes, technology trends, or sector analysis.

The Signal object should describe what was observed, where it came from, how strong it is, how confident the organization is, what opportunity it suggests, and what action should be considered.

The Signal object should not directly define relationships to products, use cases, business objectives, or other catalog objects. Those connections belong to Open Data Product Graphs, ODPG, which defines the graphs and relationships between catalog objects.

By defining signals as reusable catalog objects, ODPC supports opportunity discovery, market intelligence, gap analysis, portfolio prioritization, AI-assisted planning, and continuous alignment between data products and changing business needs.

Mandatory attributes and options

Example of catalog object usage:

signal:
  id: SIG-001
  name:
    en: Competitors expanding real-time event intelligence
  description:
    en: External market monitoring found that competing
        smart city platforms are adding real-time event
        intelligence features.
  type: competitive
  source:
    origin: external
    method: ai_crawl
  observedAt: 2026-04-18T09:30:00Z
Attribute Type Required Description
signal object ✓ Top-level object that defines an ODPC signal.
id string ✓ Stable identifier for the signal.
name object ✓ Human-readable signal name using language-tagged strings.
name.en string ✓ English signal name.
description object ✓ Short explanation of what was observed and why it matters, using language-tagged strings.
description.en string ✓ English signal description.
type string ✓ Signal type. One of: demand, competitive, market, technology, policy, operational, quality, usage, risk, or gap.
source object ✓ Source information that explains where the signal came from.
source.origin string ✓ Origin of the signal, such as internal, external, or mixed.
source.method string ✓ Method used to detect the signal, such as ai_crawl, search_analysis, usage_analysis, survey, manual_review, or system_monitoring.
observedAt datetime ✓ Date and time when the signal was observed.

Type explained

Type Meaning
demand Users, customers, or stakeholders show demand for data, use cases, or products.
competitive Competitors or peer organizations are moving in a relevant direction.
market Market behavior suggests new demand or value potential.
technology Technology change creates a new product or use case opportunity.
policy Regulation, policy, or strategy creates new demand or obligations.
operational Internal operations show need for better data or decisions.
quality Quality issues create risk or improvement opportunities.
usage Product usage or non-usage reveals demand, friction, or value.
risk A risk appears that may affect trust, compliance, delivery, or operations.
gap A missing product, missing data, or unmet capability is detected.

Optional attributes and options

Example of catalog object usage:

signal:
  id: SIG-TRAFFIC-CONGESTION-001
  name:
    en: Increasing Traffic Congestion During Peak Hours
  description:
    en: Recurring congestion has been observed in key
        urban corridors during morning and evening peak
        hours, creating demand for better traffic
        optimization and mobility planning data.
  type: operational
  source:
    origin: internal
    method: system_monitoring
    system: Traffic Operations Center
    channel: usage_logs
    reference: Monthly congestion monitoring report
  observedAt: 2026-04-15T09:30:00Z

  strength: high
  confidence: high

  opportunity:
    en: Improve traffic planning and congestion response
        through better traffic flow analysis, incident
        monitoring, and journey time reliability data.

  impact:
    valuePotential: high
    urgency: high
    affectedDomains:
      - mobility
      - transport
      - smart-city

  evidence:
    summary:
      en: Monitoring reports show recurring congestion
          patterns across central Abu Dhabi corridors
          during morning and evening peak hours.
    examples:
      - Increased travel time on selected arterial roads during weekday morning peaks.
      - Repeated congestion near high-demand business and government districts.
      - Incident reports and vehicle speed patterns indicate recurring bottlenecks.

  recommendedAction:
    en: Review existing mobility data products and identify missing traffic flow, vehicle speed, road incident, and public transport datasets.

  status: reviewing

  tags:
    - mobility
    - transport
    - congestion
    - traffic-optimization
Attribute Type Required Description
source.system string System, tool, agent, or platform that detected or produced the signal.
source.channel string Channel where the signal was observed, such as public_web, search_queries, usage_logs, support_tickets, market_report, or stakeholder_feedback.
source.reference string Source reference, such as a report ID, crawl ID, log reference, URL, or document reference.
strength string Estimated strength of the signal, such as low, medium, high, or critical.
confidence string Confidence in the signal, such as low, medium, or high.
opportunity object Opportunity suggested by the signal, using language-tagged strings.
opportunity.en string English opportunity statement.
impact object Expected impact or relevance of the signal.
impact.valuePotential string Estimated value potential, such as low, medium, high, or critical.
impact.urgency string Estimated urgency, such as low, medium, high, or critical.
impact.affectedDomains array of strings Domains affected by the signal.
evidence object Evidence supporting the signal.
evidence.summary object Short evidence summary using language-tagged strings.
evidence.summary.en string English evidence summary.
evidence.examples array of strings Concrete examples that support the signal.
recommendedAction object Recommended action based on the signal, using language-tagged strings.
recommendedAction.en string English recommended action.
status string Signal lifecycle status, such as new, reviewing, accepted, rejected, converted, or archived.
tags array of strings Keywords used to classify, search, or filter the signal.

Specification extensions

While the Open Data Product Catalog Specification defines the core catalog objects and attributes, organizations may need to add implementation-specific metadata for local tools, internal workflows, or platform-specific requirements.

Extension properties are implemented as patterned fields that are always prefixed with x-. These fields may appear in ODPC objects such as Catalog, ProductReference, UseCase, BusinessObjective, and Signal.

Extensions are not part of the official ODPC object model unless they are later adopted into the specification. Tooling may ignore extension fields unless explicit support has been added.

Extensions should not be used to redefine core ODPC semantics. They should be used only for additional metadata that does not fit the standard attributes.

Useful and widely adopted extensions may become candidates for future versions of the standard. To propose useful extensions, raise an issue in GitHub:

Open Data Product Initiative GitHub issues

Example of extension usage:

schema: https://opendataproducts.org/odpc-v1.0/schema/odpc.yaml
version: "1.0"
kind: Catalog
catalog:
  metadata:
    id: CAT-001
    name:
      en: Urban Mobility Data Product Catalog
    description:
      en: Catalog of reusable portfolio objects related to urban mobility.
    x-internal-id: foobar123
    x-source-system: internal-catalog-platform
Element name
 Type Options Description
^x- any Allows extensions to the Open Data Catalogs Schema. The field name MUST begin with x-, for example, x-internal-id. The value can be null, a primitive, an array or an object.

Editors and contributors

This specification is openly developed and a lot of the work comes from community. We list all community contributors as a sign of appreciation. Maintainers process the feedback and draft new candidate releases, which may become the versions of the specification.

Maintainers:

Terms used

ODPC uses the Open Data Product Vocabulary, ODPV, as the shared vocabulary for the OpenDataProducts.org standards family. Use ODPV for common terms, stable ids, labels, definitions, aliases, and relationship names across ODPS, ODPC, and ODPG. For machine-readable lookup, use the ODPV term records at ODPV terms.jsonl.

The terms below explain ODPC-specific usage where this specification gives a shared vocabulary term a concrete catalog-object shape, field-level meaning, or modeling constraint.

Shared terms from ODPV

Term ODPV term ODPC usage
Data product catalog DataProductCatalog Implemented in ODPC as the Catalog object.
Use case UseCase Implemented in ODPC as the UseCase object.
Business objective BusinessObjective Implemented in ODPC as the BusinessObjective object.
KPI KPI In ODPC, KPIs are nested inside BusinessObjective.kpis, not defined as top-level catalog objects.
Signal Signal Implemented in ODPC as the Signal object.
Data need DataNeed Represented in ODPC through UseCase.dataNeeds.
Data product graph DataProductGraph Referenced from ODPC through Catalog.metadata.graph; graph structures belong to ODPG or another graph standard.
Identifier Identifier Used in ODPC object id fields.
Reference Reference Used in ODPC for pointers such as ProductReference.productModel.$ref and Catalog.metadata.graph.$ref.
Owner Owner Used in ODPC owner fields for accountable organizations, teams, or roles.
Domain Domain Used in ODPC domains and scope.domains fields for catalog grouping and filtering.

ODPC-specific usage notes

Term Description
Catalog The ODPC object that implements an ODPV DataProductCatalog. It is the top-level portfolio container for product references, use cases, business objectives, signals, and catalog metadata such as ownership, scope, lifecycle status, tags, and graph implementation reference.
ProductReference An ODPC-specific lightweight catalog object that identifies a data product and points to its authoritative product definition through productModel. It should not duplicate full ODPS product metadata.
ProductModel The authoritative model or specification used to define a referenced data product, such as ODPS, DPDS, or an internal product model. In ODPC, productModel.$ref points to the source product definition as a local file path or URL.
Portfolio object A reusable ODPC object used to manage a data product portfolio. Examples include ProductReference, UseCase, BusinessObjective, and Signal.
Graph standard The graph standard used to implement catalog relationships through Catalog.metadata.graph, such as ODPG, RDF, JSON-LD, GraphML, openCypher, GQL, Gremlin, GraphSON, or GeoSPARQL.
Extension property A local or implementation-specific field whose name begins with x-. Extensions can add platform metadata without redefining official ODPC semantics.

Relationship names such as supports, requires, contributesTo, measures, dependsOn, providedBy, and consumedBy should come from ODPV relationship terms and should be modeled in ODPG or another graph standard, not as direct ODPC object fields.

yaml
